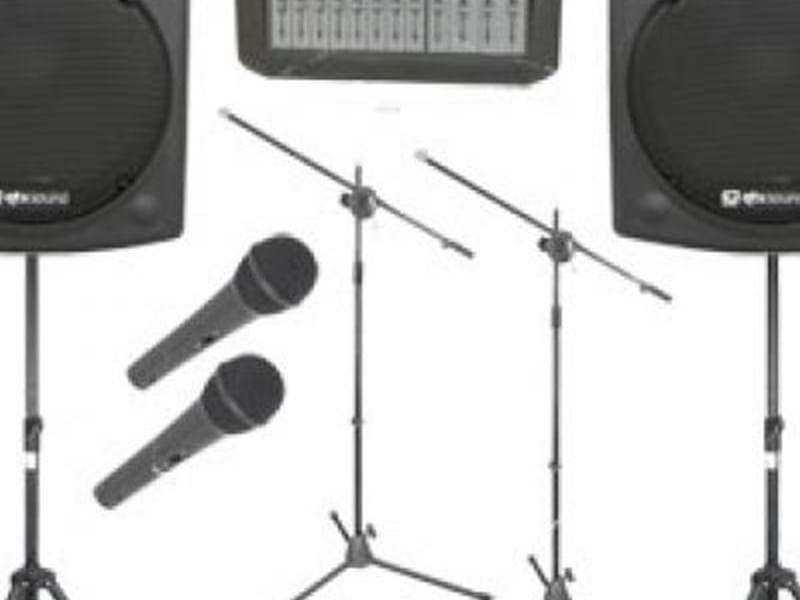

LARGE PA SYSTEM

This 500W RMS 14 Channel Complete PA System With Powered Mixer And 2 Microphones is the perfect system for any small, medium or large sized venue.

700W Compact powered mixer with 14 Inputs.

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.

24-bit 16 program DSP effects
3-band EQ per channel
7-band global graphic EQ
Internal stereo power amplifier
Balanced main outputs
Power supply230Vac 50Hz (IEC)
Input level+24dBu
Output level : line+26dBu
Frequency response20Hz-30kHz (0.5dB)
CMRR>74dB (mic 1kHz)
THD +N<0.01% (channel to main out)
Crosstalk>85dB (fader mute), >82dB (channel)
Noise rms : 22Hz-22kHz-122dBu (EIN), -82dBu (mix)
EQ: high12kHz ±15dB shelving
EQ: mid2.5kHz ±15dB band pass
EQ: low80Hz ±15dB shelving
Input impedance : mic (balanced)2k Ohms
Input impedance : line (balanced)10k Ohms
Sensitivity : mic-60 to +14dBu
Sensitivity : line-40 to +14dBu
2-track2 x RCA in & out (-2dBu)
Effects16 program DSP (24-bit sigma-delta, 40khz)
Output impedance<75 Ohms
Headphone output6.3mm jack, 30-600 Ohms
Speaker outputs L+R SPK connectors
Loudspeakers

The shockproof moulded enclosures in this kit feature M8/M6 fixing points, allowing them to be arrayed in various combinations to suit most applications from small halls to large nightclubs.

Features •SPK connectors

Rigid steel grille and easy-carry handle
Multiple mounting points
Titanium compression driver
Lightweight moulded enclosure
35mm internal pole-mounting
Impedance: 8 ohms
Pole mounting: 35mm integral top-hat
Power rms: 250W
Power max: 500W
Woofer: 380mm (15")
Frequency response: 45Hz - 20kHz
SPL @ 1W/1m: 101dB
Connector: 2 x SPK
Dims: W: (front/rear) x H x D430/250 x 680 x 360mm
Weight: 14.2kg
Professional Handheld Dynamic Microphone
Professional handheld dynamic microphones for stage and studio use. Voiced to suit both male and female vocals and with a wide bandwidth and dynamic range for instrument applications.
Supplied with microphone holder and carry pouch
Presence boost for vocal intelligibility
Rugged metal construction
Wide dynamic range
Connector: XLRM
Frequency response: 50Hz - 15kHz
Sensitivity-53dB ±3dB (0dB=1V/Pa @ 1kHz)
Output impedance: 600 ohms (1kHz)
Max SPL: 144dB
Dimensions: 170 x 51mm
Weight: 230g
professional quality and stable microphone stand with boom arm •Colour: Black
Boom arm: 800mm
Height (without boom extended): 870mm - 1.62m
Dimensions: Base770mm~
Weight: 2.38kg
Heavy Duty Steel Speaker Stand A robust steel stand with lockable height adjustment that can support large speakers. •Maximum load 35kg
35mm~ pole
Height adjustable from 1.0m to 1.9m
Mounting plate available (180.178)
Transport bag available (180.192)
Height: 1.0 - 1.9m
Tube: 35mm~
Dimensions : Collapsed: 1010 x 140 x 140mm
Weight: 3.4kg
Leads

This kit comes complete with.

2 x 6M High Quality Microphone Cables
2 x 6M High Quality Speak on Leads
